外徑千分尺
IP65防護等級。
數顯係統與133-XX-450電子外徑千分尺相同。

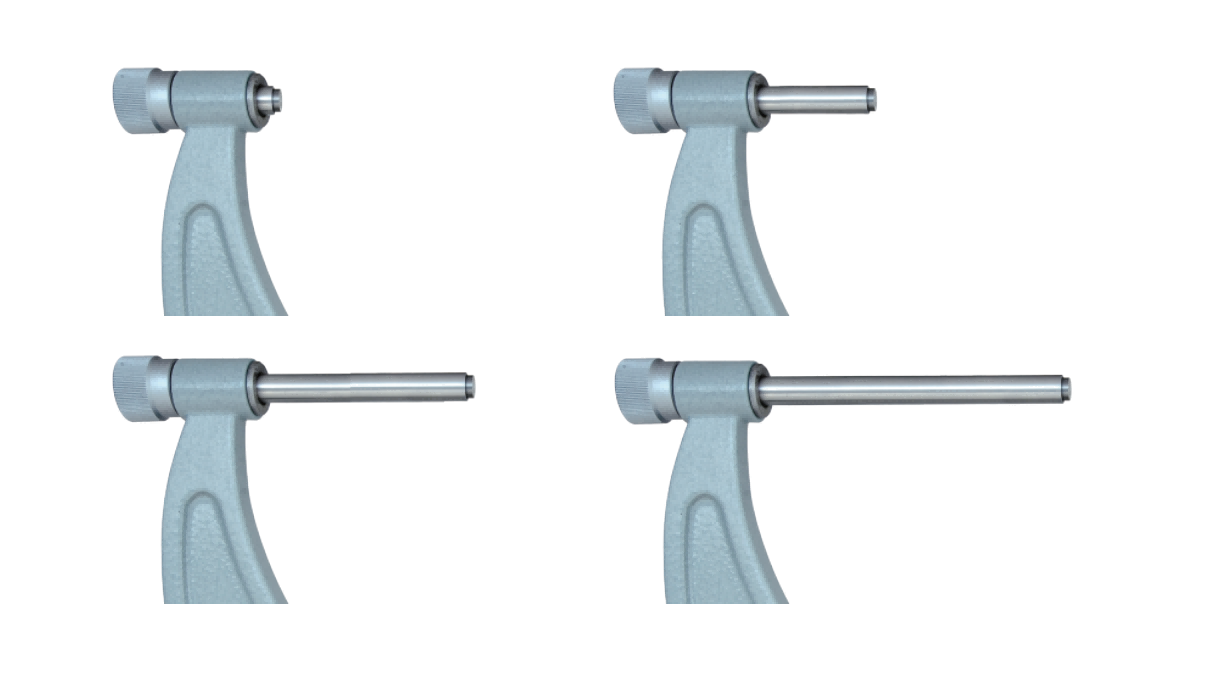

可換測砧測量範圍大，測砧精度高，更換後不用重新對零。
硬質合金測量麵。
| 貨號 | 測量範圍 | 精度 |
|---|---|---|
| 146-01-650 | 0-50mm | ±0.002mm |
| 146-02-650 | 50-100mm | ±0.003mm |
| 146-10-650 | 0-100mm | ±0.003mm |
| 146-11-650 | 100-200mm | ±0.004mm |
| 146-12-650 | 200-300mm | ±0.005mm |
| 146-13-650 | 300-400mm | ±0.006mm |
| 146-14-650 | 400-500mm | ±0.007mm |
| 146-15-650 | 500-600mm | ±0.007mm |
| 146-16-650 | 600-700mm | ±0.008mm |
| 146-17-650 | 700-800mm | ±0.009mm |
| 146-18-650 | 800-900mm | ±0.010mm |
| 146-19-650 | 900-1000mm | ±0.010mm |
| 146-61-650 | 0-150mm | ±0.003mm |
| 146-62-650 | 150-300mm | ±0.005mm |
| 146-63-650 | 300-450mm | ±0.006mm |
| 146-64-650 | 450-600mm | ±0.007mm |
| 146-65-650 | 600-750mm | ±0.009mm |
| 146-66-650 | 750-900mm | ±0.010mm |
| 146-67-650 | 900-1050mm | ±0.010mm |

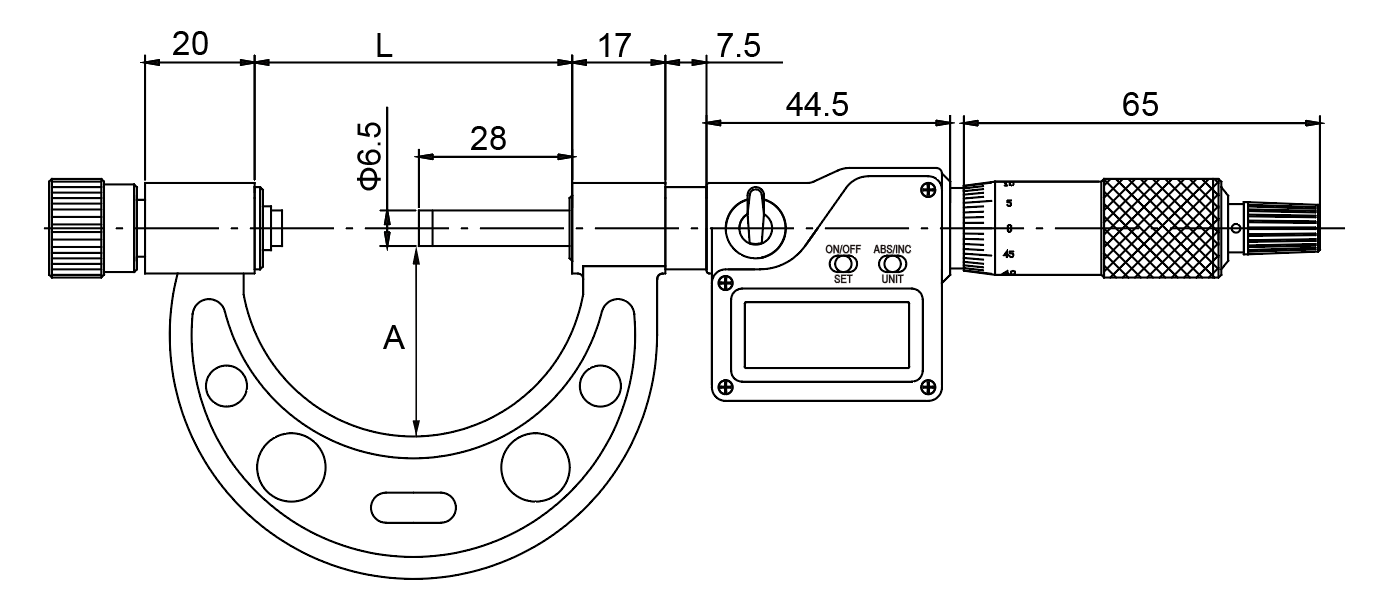

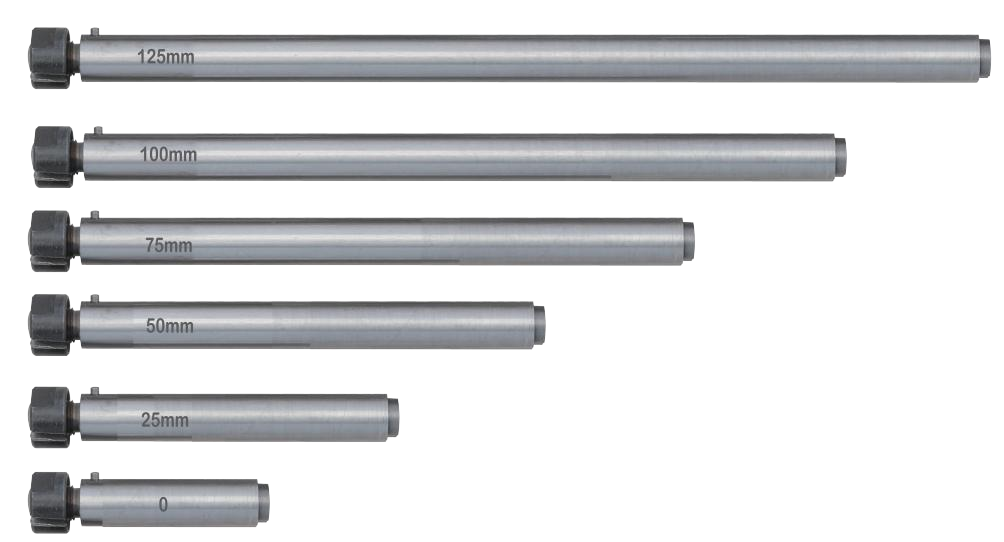

| 測量範圍 | A | L | 測砧 | 對柱 |
|---|---|---|---|---|
| 0-50mm | 35mm | 58mm | 2 | 1 |
| 50-100mm | 57mm | 108mm | 2 | 2 |
| 0-100mm | 57mm | 108mm | 4 | 3 |
| 100-200mm | 114mm | 208mm | 4 | 4 |
| 200-300mm | 165mm | 308mm | 4 | 4 |
| 0-150mm | 82mm | 158mm | 6 | 5 |
| 150-300mm | 165mm | 308mm | 6 | 6 |
